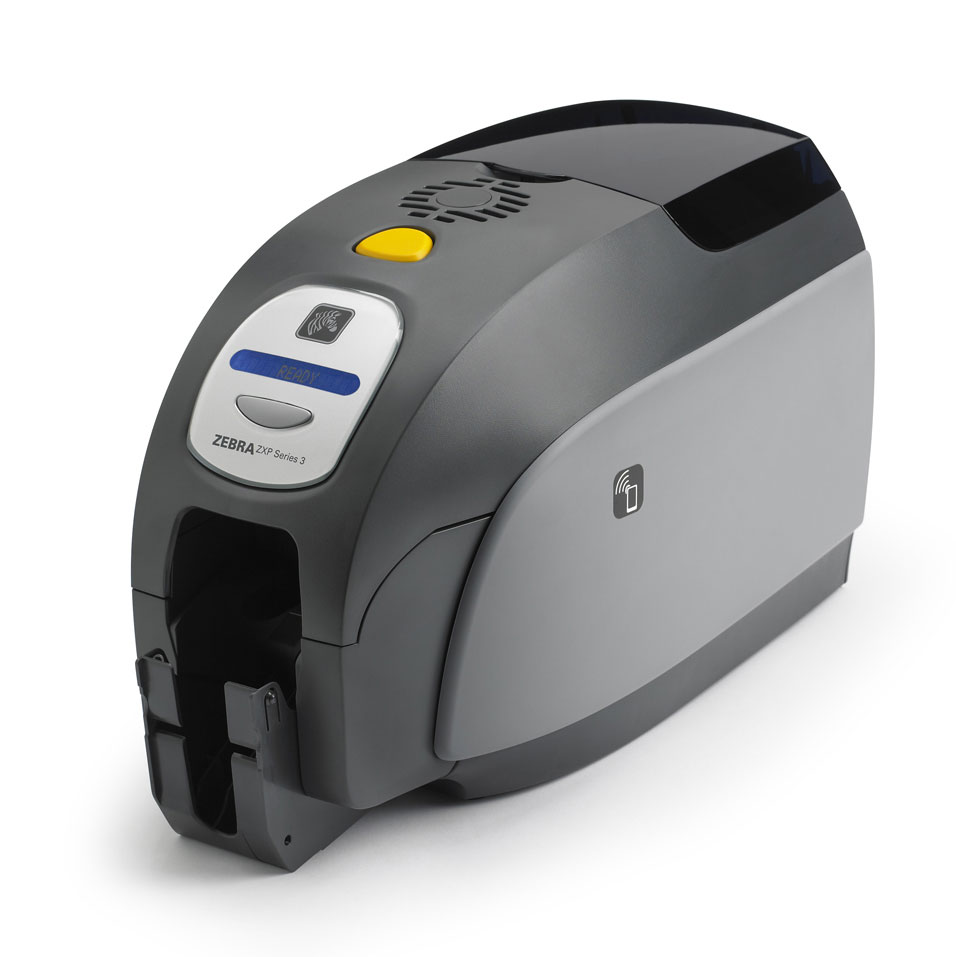

[ใหม่] เครื่องพิมพ์บัตร ZXP3 Dye sublimation thermal transfer direct-to-card • ZRaster host-based image processing technology • Full-color or monochrome printing • Single- and dual-sided printing • 750 cph monochrome single-sided • 180 cph full-color YMCKO single-sided • Edge-to-edge printing on standard CR80 media
436 สัปดาห์ ที่แล้ว
- กรุงเทพมหานคร - เขตวังทองหลาง - คนดู 40
38,500 ฿
รายละเอียด
Specifications
zxps3-standard-th
Standard Features
True Colours® ix Series™ ZXP 3 highperformance ribbons with intelligent media technology
High capacity, Eco-Friendly Load-N-Go™ dropin ribbon cartridges
ZRaster™ host-based image processing
More Standard Features
Auto calibration of ribbon
USB connectivity
Microsoft Certified Windows drivers
Energy Star Certified
Print Touch NFC tag for online Printer documentation access
100 card covered feeder (30 mil)
45 card capacity output hopper (30 mil)
16-character LCD operator control display
300 dpi (11.8 dots/mm) print resolution
Two-year warranty on printer
Two-year (unlimited passes) original printhead
One-year hot swap (U.S. only)
Secure lock slot
Printer Specifications
Dye-sublimation thermal transfer direct to card
Full color or monochrome printing
Single- and dual-sided printing
700 cph monochrome single-sided
180 cph single-sided YMCKO
140 cph dual-sided YMCKOK
Edge-to-edge printing on standard CR-80 media
Supplies Specifications
NOTE: The ZXP Series 3 printer is designed to work only with Zebra True Colours ix Series ZXP 3 high-performance ribbons.
Zebra ix Series intelligent technology automatically detects and authenticates ribbon.
Integrated cleaning roller included on each ribbon.
Media Starter Kit (single-sided)– 1 YMCKO ribbon, 200 30-mil PVC cards,
Cleaning Kit: 4 print engine cleaning cards and 4 feeder cleaning cards, 1000 images
Operating Characteristics
Operating temperature: 60° F (15° C) to 86° F (30° C)
Storage temperatures: 23° F (-5° C) to 158° F (70° C)
Operating humidity: 20% to 65% non-condensing
Storage humidity: 20% to 70% non-condensing
Media Storage:
Temperature: 41F to 77F (5C to 30C)
Humidity: 35% to 65% non-condensing
Do not store in directt sunlight
Electrical
Auto-switching single-phase AC power
Operating range: 90-132VAC and 190-264VAC RMS
Frequency range : 47-63 Hz.
Power requirement is 100W maximum continuous and 607W peak (for 450 microsec) output power.
FCC Class A
Physical Characteristics
Width: 7.9" (200 mm)
Height: 9.3" (236 mm)
Depth: 14.5" (368 mm)
Weight: 11.6 lbs (5.3 kg)
Optional Features
*Built-in 10/100 Ethernet connectivity
*CardSense™ single-card feed mode
ZebraCare™ extended product warranty programs
*Lockable enclosure with obscure output bin
Communication Interfaces
USB V2.0 (cable included) - standard
*Built-in 10/100 Ethernet - optional
Encoding Options and Specifications
Magnetic stripe encoder – ISO 7811 (new and re-encoded, tracks 1,2, and 3, high and low coercivity, stripe down, 30 mil card only
*Smart card contact station ISO 7816
*Combined MIFARE® ISO 14443 (13.56 MHz) and ISO 7816 Contact Encoder Specifications – PC/SC and EMV level 1 certified (50 card capacity [30 mil] external output hopper)
Encoding over USB and Ethernet

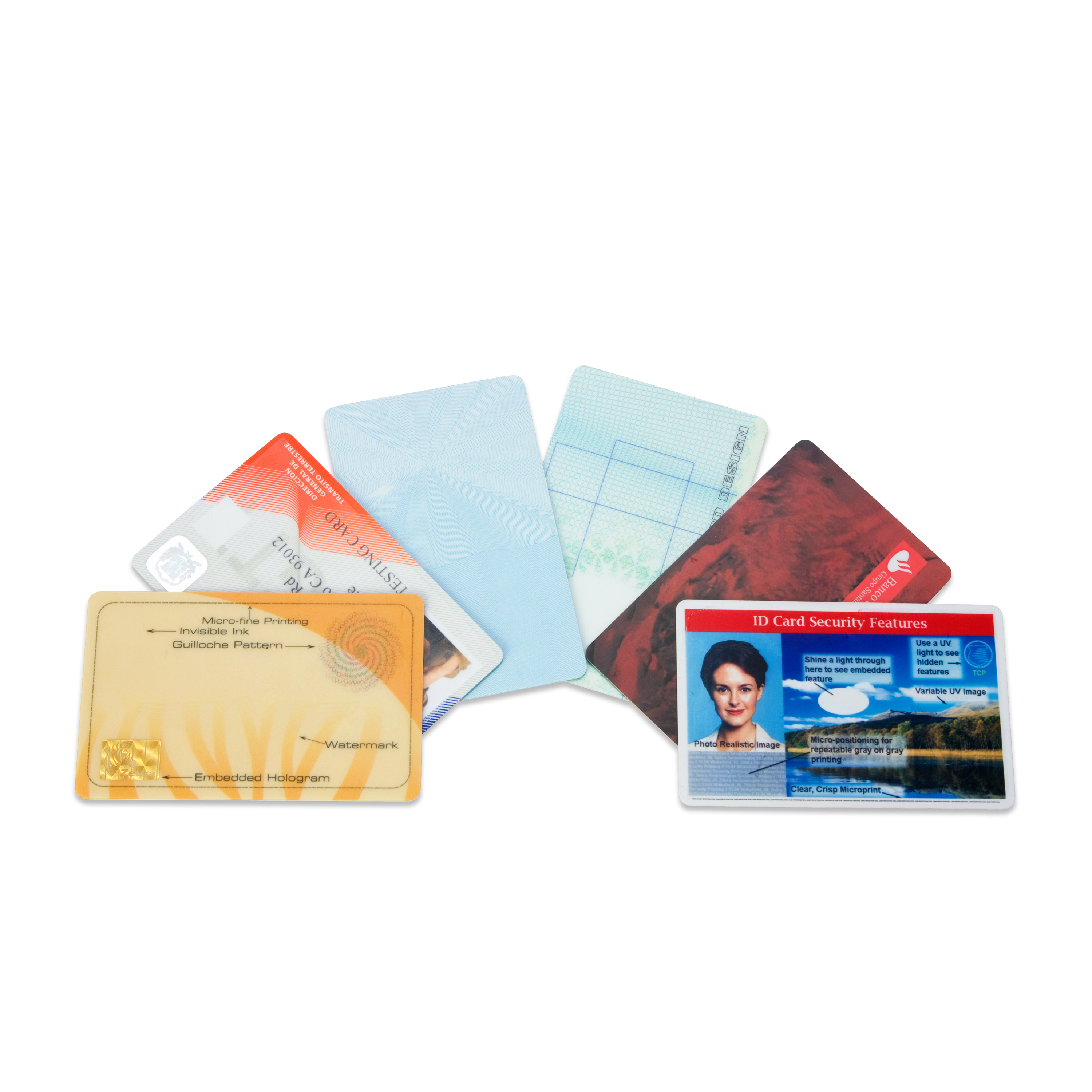

Card Compatibility
NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.
Card Thickness: 10-40 mil
Card Size: CR-80, ISO 7810 format, Type ID-1, 2.12" (54 mm) x 3.38"(86 mm)
Card Material: PVC and PVC composite
Smart Card Contact – ISO 7816-1,2,3,4
Smart Card Contactless MIFARE® ISO 14443A/B
Spot Color or monochrome print only on < 20 mil card thickness
